ESL Maple Series

The Electronic Shelf Tags Maple Series is a high-quality digital shelf tag series independently developed and manufactured by Datallen. It offers high scalability, efficiency, and stability, has multiple sizes, and can be integrated into various industries such as supermarkets,warehouse and more.

Advantages of ESL Maple Series

Main Features

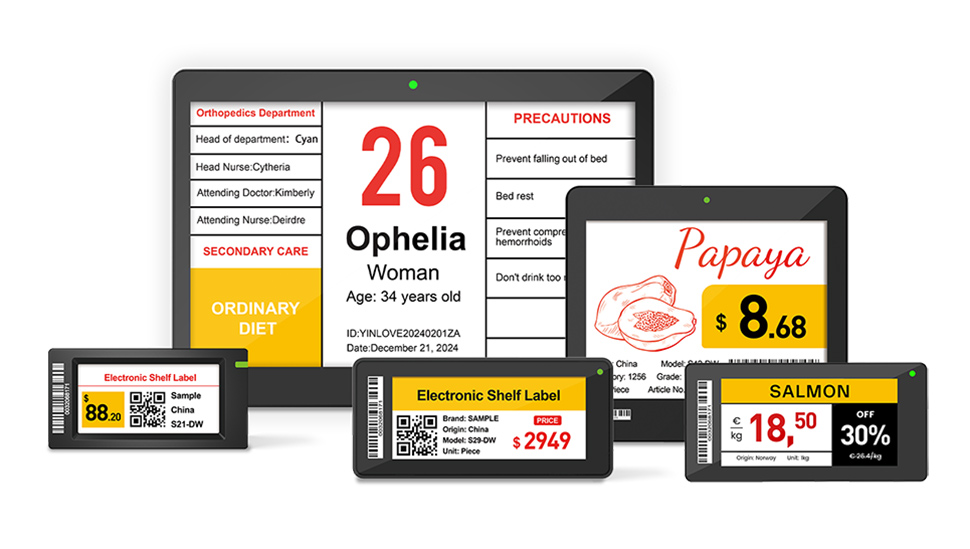

ESL Maple Series

Functional Characteristics

  • Image Transmission: Effortlessly supports full-screen image transfers via wireless connection, ensuring crisp, complete image display without compromise.
  • Comprehensive Font Library: Built-in extensive font support, including a wide range of Chinese characters, English letters, and symbols.
  • Robust Interference Resistance: Equipped with advanced frequency-hopping technology to maintain stable performance in noisy signal environments.
  • LED indicators: Features independently controlled tri-color LED lights with adjustable blinking frequency (default: 1 blink/second) for status indication or alert signals.
  • Temperature Monitoring: Supports temperature sampling function to ensure accurate environmental tracking.
  • Battery Status Alerts: Supports power level sampling with low-battery alerts to guarantee uninterrupted operation

Types of Electronic Shelf Label

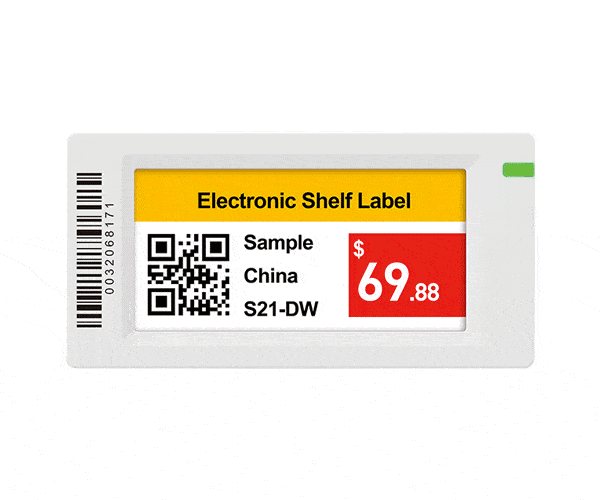

S21-DW

S21-DW

Dimensions 69.3x35x12 mm
Screen Size 2.13 inch
Resolution 250(H) x 122(V)
Display Color Black/White/Red/Yellow
Lattice Density 130 DPI
Communication Protocol 2.4G private protocol
Operating Temperature 0 ℃ ~40 ℃
Battery CR2450 cell battery (600mA)x2

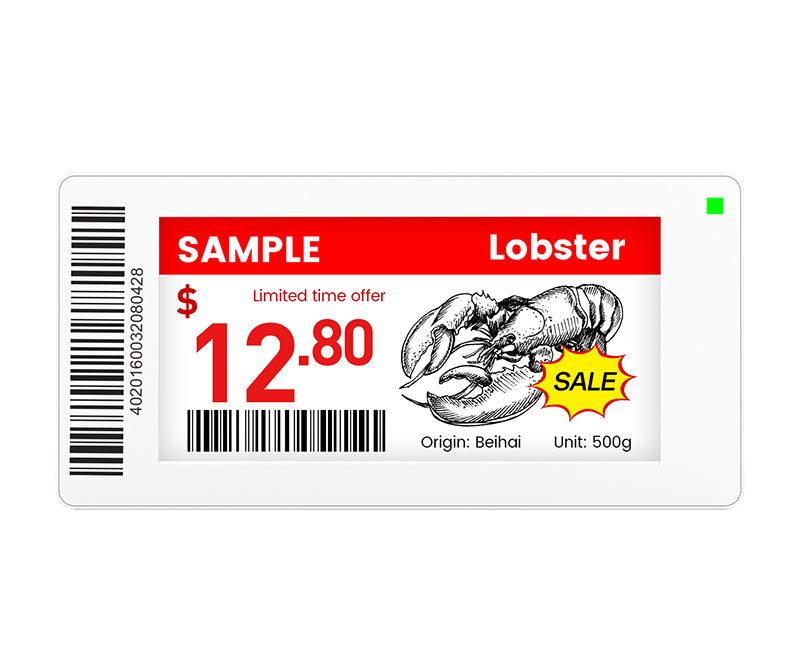

S26-DW

S26-DW

Dimensions 82.6 x 40.6 x 13 mm
Screen Size 2.66 inch
Resolution 296(H) x 152(V)
Display Color Black/White/Red/Yellow
Lattice Density 125 DPI
Communication Protocol 2.4G private protocol

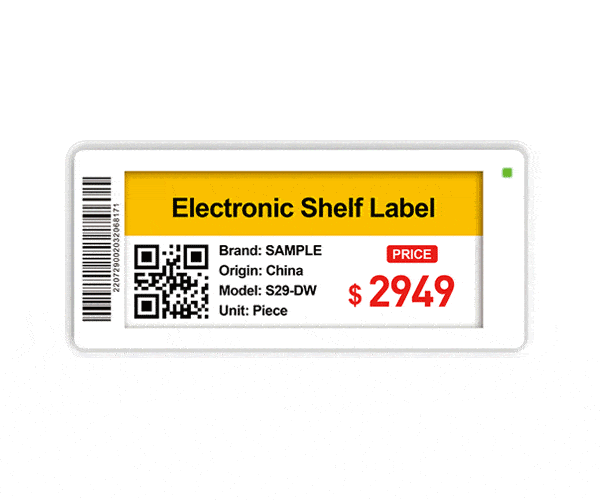

S29-DW

S29-DW

Dimensions 89.9 x 41.8 x 13 mm
Screen Size 2.9 inch
Resolution 296(H) x 128(V)
Display Color Black/White/Red/Yellow
Lattice Density 112 DPI
Communication Protocol 2.4G private protocol
Operating Temperature 0 ℃ ~40 ℃
Battery CR2450 cell battery (600mA)x2

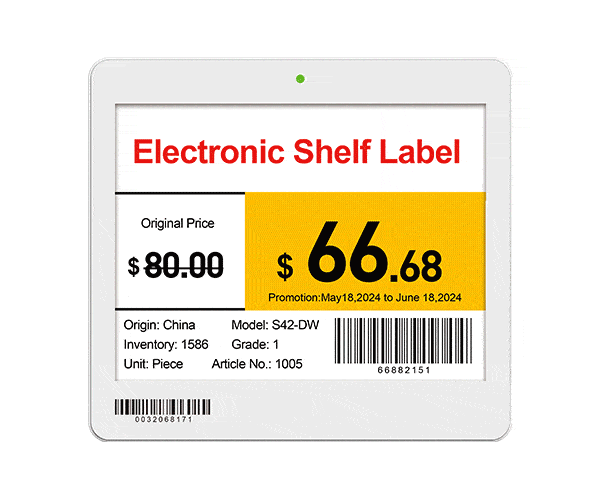

S42-DW

S42-DW

Dimensions 97 x 89.5 x 10.5 mm
Screen Size 4.2 inch
Resolution 400(H) x 300(V)
Display Color Black/White/Red/Yellow
Lattice Density 119 DPI
Communication Protocol 2.4G private protocol
Operating Temperature 0 ℃ ~40 ℃
Battery CR2450 cell battery (600mA)x3

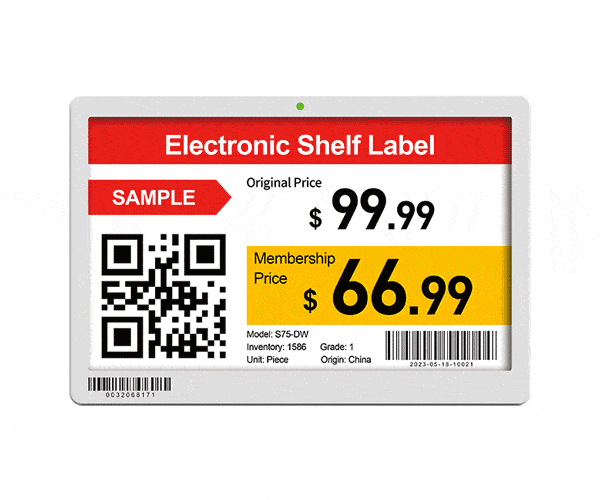

S75-DW

S75-DW

Dimensions 178 x 122 x 12 mm
Screen Size 7.5 inch
Resolution 800(H) x 480(V)
Display Color Black/White/Red/Yellow
Lattice Density 124 DPI
Communication Protocol 2.4G private protocol
Operating Temperature 0 ℃ ~40 ℃
Battery CR2450 cell battery (600mA)x6

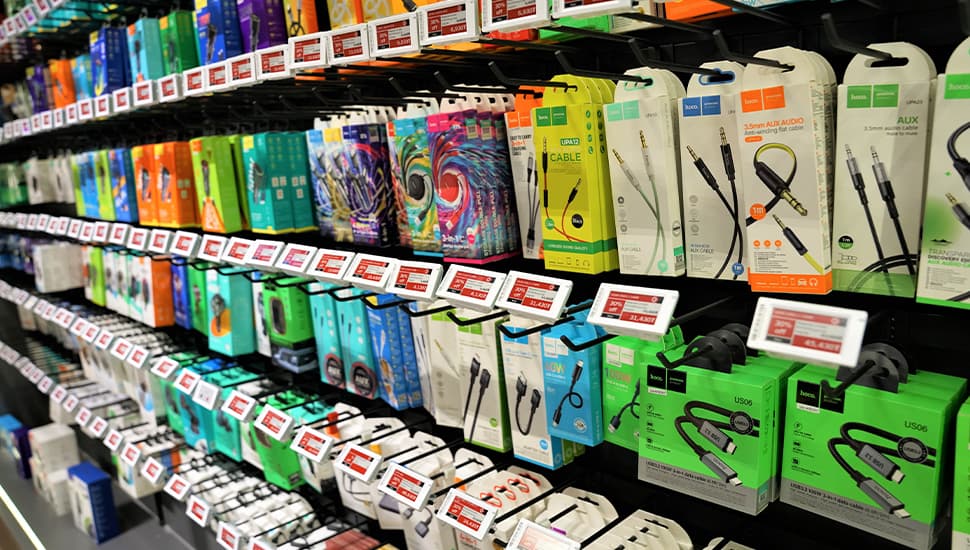

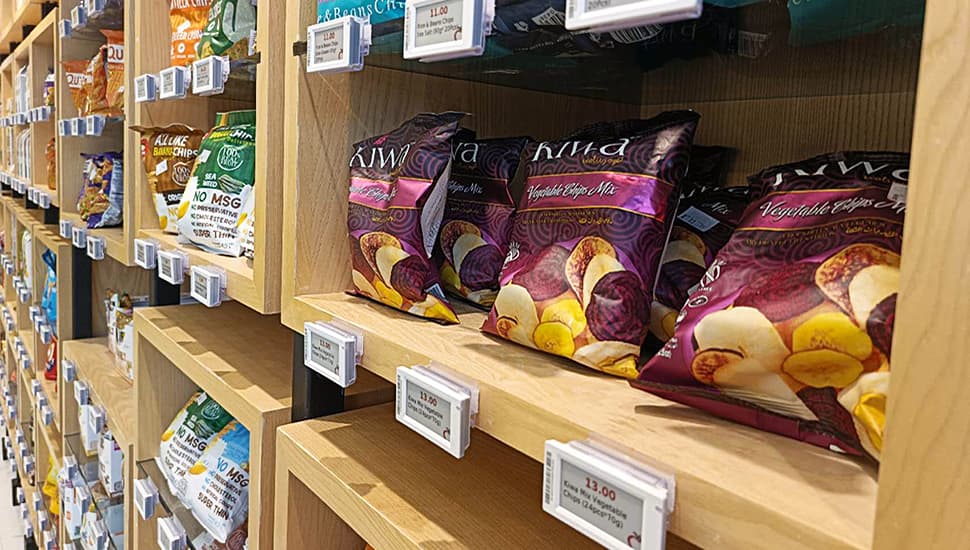

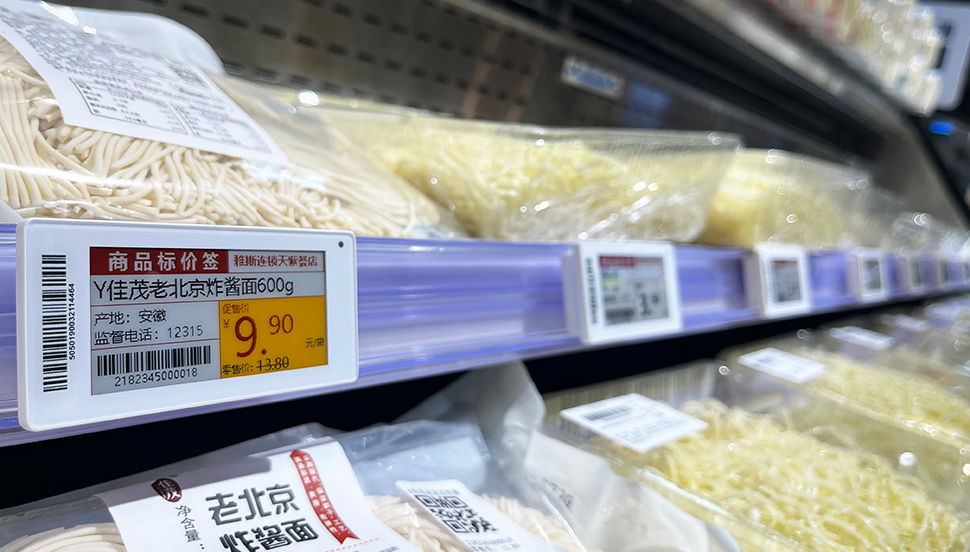

Use Cases
